Air-Cooled Scroll Chiller Solutions

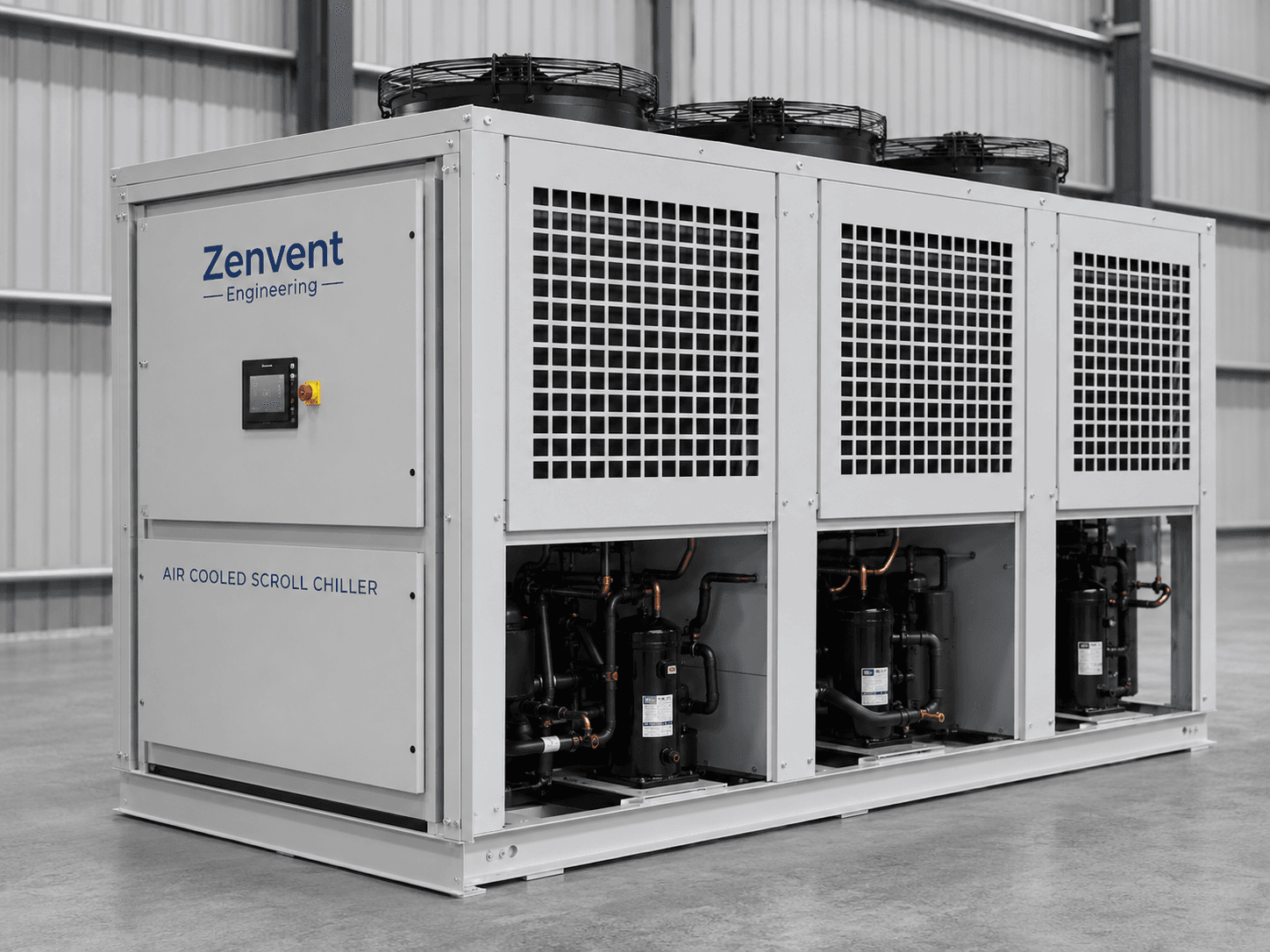

Air-Cooled Scroll Chillers

Zenvent Engineering provides high-performance Air Cooled Scroll Chillers for reliable commercial cooling, industrial process cooling and central chilled-water applications. Our solutions are engineered to deliver stable cooling capacity, low operating noise, efficient part-load performance and dependable operation under demanding environmental conditions.

As an experienced air-cooled scroll chiller supplier in India, Zenvent Engineering supports projects from initial system evaluation and equipment selection to piping installation, testing, commissioning, BMS integration and preventive maintenance. Each system is selected according to the required cooling capacity, chilled-water temperature, ambient conditions, available installation space and operational requirements.

Our capabilities include packaged scroll chiller systems, modular configurations, inverter scroll chiller systems, multi-scroll compressor chillers and low-temperature glycol chillers. Whether the requirement is for a new commercial building, factory, hospital, hotel, shopping mall or process cooling facility, we deliver a complete and practical cooling solution.

Contact Zenvent Engineering for a technically selected, energy-efficient and service-friendly air-cooled scroll chiller system.

What Is an Air-Cooled Scroll Chiller?

An air cooled scroll chiller is a refrigeration system that removes heat from water or a water-glycol mixture and rejects that heat directly into the outdoor air. The chilled water produced by the system can be circulated through air handling units, fan coil units, process equipment or other cooling terminals.

Unlike a water cooled scroll chiller, an air-cooled system does not normally require a cooling tower, condenser-water pump or extensive condenser-water piping. This makes it suitable for projects requiring simplified installation, reduced water consumption and lower infrastructure requirements.

The main refrigeration component is the hermetic scroll compressor. Inside the compressor, two spiral-shaped scroll elements compress the refrigerant. One scroll remains stationary while the other moves in an orbital pattern. This provides smooth compression with fewer moving parts, low vibration and dependable operation.

A standard air cooled scroll compressor chiller can use one or several scroll compressors. A multi-scroll compressor chiller provides staged capacity control by switching compressors on and off according to the cooling demand.

More advanced systems may use an inverter scroll or variable-speed scroll compressor. An inverter scroll chiller adjusts compressor speed according to real-time cooling requirements, helping reduce power consumption during part-load operation.

Scroll Chiller vs Centrifugal Chiller

Scroll chillers are commonly selected for small to medium cooling capacities, modular installations and facilities with varying cooling demand. A centrifugal chiller is generally used for larger central chilled-water plants requiring significantly higher cooling capacity.

When evaluating options such as a Trane centrifugal chiller, Trane scroll chillers or modular scroll systems, the correct selection should be based on total cooling load, operating profile, plant configuration, energy efficiency, available space and maintenance requirements.

Zenvent Engineering evaluates these factors before recommending a suitable chiller configuration.

Working Principle and Main Components

An air-cooled scroll chiller operates through a closed refrigerant circuit. The refrigerant continuously absorbs heat from the chilled water and releases it into the surrounding air.

Refrigeration Cycle

The chiller evaporator transfers heat from the circulating chilled water to the refrigerant. The refrigerant changes into low-pressure vapour and enters the chiller scroll compressor.

The compressor increases the refrigerant pressure and temperature. The hot refrigerant then enters the air-cooled condenser, where axial condenser fans or EC condenser fans move outdoor air across the condenser coil.

Heat is released into the atmosphere, causing the refrigerant to condense into a liquid. The liquid passes through an electronic expansion valve, where its pressure and temperature are reduced before it returns to the evaporator.

This refrigeration cycle continues until the chilled-water temperature reaches the required set point.

Scroll Compressors

The scroll compressor is responsible for circulating and compressing the refrigerant. Depending on the system design, the chiller may include:

Hermetic scroll compressor

Fixed-speed scroll compressor

Inverter scroll compressor

Variable-speed scroll compressor

Multiple scroll compressors arranged in stages

A multi-compressor scroll chiller system can match cooling output more closely with changing demand. It can also provide operational flexibility because the remaining compressor circuits may continue operating if one circuit requires maintenance.

Air-Cooled Condenser

The air-cooled condenser removes heat from the refrigerant. It normally includes a condenser coil, axial condenser fan, EC condenser fan or variable-speed fan control.

A microchannel condenser may also be used to provide a compact coil arrangement and efficient heat transfer. Proper condenser selection is essential because high ambient temperatures, restricted airflow or dirty condenser coils can reduce chiller capacity and efficiency.

Chiller Evaporator

The evaporator transfers heat from the chilled water to the refrigerant. Common evaporator configurations include:

Brazed-plate heat exchanger

Shell-and-tube evaporator

Refrigerant-to-water plate heat exchanger

The evaporator must be selected according to water flow, cooling capacity, pressure drop, chilled-water temperature and glycol concentration.

Chilled-Water Circuit

The chilled-water circuit can include a primary chiller pump, chilled-water pump, buffer tank, expansion tank, isolation valves, strainers, flow switches, pressure gauges and temperature sensors.

A correctly sized buffer tank helps stabilise water temperature and prevents frequent compressor cycling when the system water volume is low.

Chiller Control Panel

A modern chiller control panel monitors operating temperatures, pressures, compressor status, fan speed, water flow, alarms and system safety conditions.

A PLC-controlled chiller can also support:

Automatic capacity control

Compressor staging

Electronic expansion valve control

Remote chiller monitoring

Alarm history

Operating data recording

BMS chiller integration

Modbus or BACnet communication

Scheduled start and stop functions

Zenvent Engineering can integrate the chiller with the building management system for central monitoring and operational control.

Types and Available Configurations

Zenvent Engineering provides scroll chiller solutions in different configurations to suit commercial and industrial requirements.

Packaged Air-Cooled Scroll Chiller

A packaged scroll chiller combines the compressor, condenser, evaporator, fans, controls and safety devices within one outdoor unit. This arrangement simplifies site installation and reduces the amount of field assembly required.

A packaged air-cooled scroll chiller is suitable for offices, hotels, hospitals, schools, commercial buildings and light industrial applications.

Modular Air-Cooled Scroll Chiller

A modular scroll chiller uses multiple smaller chiller modules connected to a common chilled-water system. Additional modules can be added when future cooling demand increases.

A modular air-cooled scroll chiller system provides staged capacity, operational flexibility and easier installation where access is restricted.

Inverter Scroll Chiller

An inverter scroll chiller varies the compressor speed according to the actual cooling load. This helps reduce frequent compressor cycling and can improve part-load efficiency.

An inverter scroll chiller installation service is particularly useful for buildings where cooling demand changes throughout the day.

Depending on the existing installation and technical requirements, project evaluations may involve systems such as an LG inverter scroll chiller, Daikin scroll chiller or other variable-capacity equipment.

Variable-Speed Scroll Chiller

A variable-speed scroll chiller continuously adjusts compressor operation according to the required leaving-water temperature and system demand.

A variable-speed scroll compressor chiller can provide stable temperature control for commercial comfort cooling and industrial processes where load conditions frequently change.

Multi-Scroll Compressor Chiller

A multi-scroll compressor chiller uses two or more compressors within one or multiple refrigerant circuits. Compressors operate in stages to provide efficient chiller capacity control.

This arrangement is suitable for facilities requiring reliable staged operation and improved part-load performance.

Industrial Scroll Chiller

An industrial scroll chiller is designed for process cooling applications such as machinery cooling, plastic processing, pharmaceutical production, food processing, printing, laboratories and manufacturing plants.

Zenvent Engineering can configure the system with industrial pumps, buffer tanks, stainless-steel water circuits, glycol solutions, process heat exchangers and remote monitoring controls.

Glycol and Low-Temperature Process Chiller

A glycol chiller uses a water-glycol mixture to achieve lower fluid temperatures and reduce freezing risk.

A low-temperature air-cooled process chiller may be required for industrial processes, cold rooms, chemical processes and specialised production equipment. The correct glycol percentage, pump selection, evaporator design and safety controls must be considered during system selection.

Existing Chiller Assessment and Replacement

Zenvent Engineering can assess existing installations involving different scroll chiller brands and model families, subject to site conditions, technical data and component availability.

Existing systems may include configurations commonly associated with:

Carrier air cooled scroll chiller

Carrier scroll chiller

30RA RH scroll chiller

30 RBA scroll chiller

Daikin AGZ chiller

Daikin AGZ101E

Daikin air cooled scroll chiller

Daikin Trailblazer chiller

Trane air cooled scroll chiller

Trane scroll chiller

Trane CGAM 100 chiller

Trane CGAM 130

YCAL chiller

YLAA chiller

Blue Star scroll chiller

Chiller scroll inverter Hitachi

Our assessment can cover operating condition, control system, refrigerant circuit, compressor performance, heat exchangers, pumps, electrical components and replacement feasibility.

Benefits and Energy-Efficiency Features

A properly selected high-efficiency air-cooled scroll chiller offers several operational and installation advantages.

Simplified Installation

An air-cooled chiller normally does not require a cooling tower or condenser-water system. This can reduce civil work, piping complexity, water treatment requirements and installation space.

Efficient Part-Load Operation

Commercial and industrial cooling systems rarely operate at full load throughout the entire day. Multi-scroll and inverter scroll systems can reduce capacity during lower cooling demand.

Part-load efficiency is evaluated through parameters such as chiller IPLV and seasonal performance. Proper compressor staging, condenser fan control and chilled-water temperature management can improve overall system performance.

High Chiller COP

Chiller COP represents the relationship between cooling output and electrical power input. A higher chiller COP generally indicates more efficient operation under the specified conditions.

Actual efficiency depends on ambient temperature, chilled-water temperature, condenser cleanliness, water flow, compressor condition and system loading.

Reduced Noise and Vibration

A low-noise scroll chiller can be suitable for hotels, hospitals, offices, residential developments and other noise-sensitive environments.

Scroll compressors provide smooth compression, while EC condenser fans, acoustic compressor enclosures and variable-speed fan controls can further reduce operating noise.

Lower Water Consumption

Air-cooled systems reject heat directly into the atmosphere and do not depend on cooling-tower water. This makes them suitable for locations where water conservation is important.

Flexible Capacity Expansion

Modular scroll chillers allow the cooling system to expand as the facility grows. Additional modules can be connected to the common chilled-water network when required.

Low-GWP Refrigerant Options

A low-GWP refrigerant chiller can help support modern efficiency and environmental requirements. Refrigerant selection must consider system capacity, equipment availability, operating pressure, safety classification and application requirements.

Zenvent Engineering can evaluate suitable refrigerant and equipment options during the design stage.

Remote Monitoring and BMS Integration

A BMS-integrated air-cooled scroll chiller allows facility operators to monitor:

Chilled-water temperatures

Compressor operating status

Condenser fan status

Water flow

Operating pressures

Energy consumption

Active alarms

Maintenance requirements

Remote chiller monitoring helps improve response time and provides better visibility of the system’s operating condition.

Design, Installation and Commissioning

The performance of an air-cooled scroll chiller depends not only on the equipment but also on correct design, installation and commissioning.

Zenvent Engineering provides turnkey air-cooled scroll chiller solutions covering system planning, equipment selection, chilled-water piping, pump installation, electrical work, control integration and testing.

Cooling Load and Chiller Selection

The first stage is to calculate or verify the required cooling capacity. Selection must consider:

Peak cooling load

Minimum and maximum operating load

Chilled-water supply and return temperatures

Outdoor design temperature

Process requirements

Daily operating hours

Future capacity expansion

Standby or redundancy requirements

Selecting an oversized chiller can cause frequent cycling and poor part-load operation. An undersized chiller may fail to maintain the required water temperature during peak demand.

Equipment Location and Airflow

Air-cooled chillers require sufficient clearance around the condenser coils and above the fans. Poor placement can cause hot discharge air to return to the condenser intake, increasing condensing pressure and power consumption.

Our engineers evaluate ventilation, service access, structural support, vibration isolation and noise control before finalising the installation arrangement.

Air-Cooled Scroll Chiller Piping Installation

Correct air-cooled scroll chiller piping installation is essential for reliable chilled-water circulation.

The installation can include:

Primary chilled-water piping

Chilled-water pump and chiller installation

Buffer tank

Expansion tank

Air separator

Strainers

Isolation valves

Balancing valves

Flexible connectors

Temperature and pressure gauges

Flow switch

Drain and air vent points

Pipe insulation

Piping is planned to maintain the required flow, control pressure drop and provide proper service access.

Electrical and Control Integration

The electrical installation can include incoming power supply, isolators, protection devices, power cabling, control cabling, earthing and communication connections.

For a PLC-controlled chiller, Zenvent Engineering can coordinate operating signals, pump interlocks, remote start and stop, alarm outputs and BMS chiller integration.

Scroll Chiller Testing and Commissioning

Our scroll chiller testing and commissioning process can include:

Equipment inspection

Electrical connection verification

Chilled-water flushing

Water flow verification

Pump rotation check

Refrigerant circuit inspection

Control setting verification

Compressor operation check

Condenser fan operation check

Leaving-water temperature test

Alarm and safety testing

BMS communication testing

Performance observation

Commissioning ensures that the system operates according to the approved design and manufacturer requirements.

Commercial and Industrial Applications

Zenvent Engineering supplies scroll chiller systems for a wide range of facilities.

Commercial Buildings

An air-cooled scroll chiller for commercial buildings can provide chilled water to air handling units and fan coil units throughout the property.

Applications include corporate offices, business centres, educational buildings, auditoriums and mixed-use developments.

Hotels and Hospitals

An air-cooled scroll chiller for hotels and hospitals must provide dependable cooling under changing occupancy and operating schedules.

Modular and multi-compressor systems can provide efficient staged operation during lower cooling demand while maintaining capacity during peak periods.

Offices and Shopping Malls

A scroll chiller for offices and shopping malls supports central comfort cooling with flexible capacity control. BMS integration allows facility teams to monitor temperatures, operating schedules and alarms from a central location.

Factories and Manufacturing Plants

A scroll chiller for factories and manufacturing plants can provide chilled water for process machines, hydraulic systems, production equipment, electrical panels and environmental cooling.

Zenvent Engineering can design industrial scroll chiller installations with duty and standby pumps, buffer tanks, glycol circuits and process-specific controls.

Industrial Process Cooling

An industrial process cooling scroll chiller is suitable for applications requiring controlled water temperature during production.

Applications can include:

Plastic processing

Food and beverage production

Pharmaceutical manufacturing

Chemical processing

Printing equipment

CNC machinery

Laser equipment

Welding systems

Laboratory equipment

Packaging lines

Data Centre Cooling

An air-cooled chiller for data centre cooling can support air handling units, precision cooling units or chilled-water cooling systems.

Data centre applications require reliable controls, stable water temperatures, redundancy planning, remote monitoring and proper capacity management.

Low-Temperature Industrial Applications

A glycol scroll chiller for industrial applications can supply low-temperature fluid to specialised equipment or processes.

The equipment must be selected according to the required outlet temperature, glycol concentration, ambient conditions, pump pressure and heat-transfer characteristics.

Maintenance and Why Choose Zenvent Engineering

Regular chiller maintenance helps maintain cooling capacity, reduce unexpected stoppages and improve operating efficiency.

Zenvent Engineering provides air-cooled scroll chiller repair and maintenance for commercial and industrial installations.

Preventive Chiller Maintenance

Preventive maintenance can include:

Condenser coil cleaning

Compressor current measurement

Refrigerant pressure inspection

Refrigerant leak inspection

Chilled-water flow verification

Water temperature checking

Fan and motor inspection

Electrical terminal tightening

Control panel inspection

Sensor calibration checks

Expansion valve performance checks

Pump and strainer inspection

Alarm history review

An annual maintenance contract for scroll chillers provides scheduled inspection and helps identify developing issues before they cause major failures.

Scroll Compressor Repair and Replacement

Scroll compressor repair and replacement may be required when the compressor develops electrical failure, mechanical damage, refrigerant loss or reduced pumping capacity.

Before replacing the compressor, the complete refrigerant circuit should be inspected to identify the reason for failure. Replacing a compressor without correcting the root cause can lead to repeated damage.

Alarm and Control Troubleshooting

Control-related service requests may involve temperature sensor faults, flow alarms, refrigerant alarms, communication errors or controller access issues.

For example, a Trane CGAM chiller loss of charge alarm requires inspection of refrigerant pressures, leak points, sensor readings and operating history. A request related to a Trane CGAM chiller password should be handled through authorised operating procedures and proper equipment documentation.

Zenvent Engineering does not recommend bypassing safety controls or changing protected controller settings without technical verification.

Chiller Retrofit and Control Upgrade

An air-cooled chiller retrofit and control upgrade can improve the operation of an existing system without immediately replacing the complete chiller.

Retrofit work may include:

New PLC control panel

Electronic expansion valve upgrade

BMS communication

Compressor staging improvement

Fan speed control

Temperature sensor replacement

Remote monitoring system

Pump control integration

Electrical protection upgrade

Existing Scroll Chiller Replacement

Existing scroll chiller replacement services are suitable when the current system has repeated breakdowns, obsolete controls, refrigerant limitations, damaged heat exchangers or high operating costs.

Zenvent Engineering evaluates the existing cooling load, piping, pumps, electrical capacity and available space before recommending the replacement system.

Chiller Energy Audit

A chiller energy audit and efficiency improvement assessment can identify issues such as:

Excessive compressor cycling

High condensing pressure

Dirty condenser coils

Incorrect chilled-water flow

Poor temperature differential

Simultaneous pump operation

Incorrect control settings

Low part-load efficiency

Oversized equipment

Unnecessary operating hours

Based on the findings, we can recommend operational changes, control upgrades, maintenance actions or equipment replacement.

Why Choose Zenvent Engineering?

Zenvent Engineering delivers practical and complete cooling solutions for commercial and industrial projects.

Our services include:

Air-cooled scroll chiller selection

Commercial air-cooled chiller contracting

Industrial scroll chiller installation services

Air-cooled scroll chiller installation contracting

Chilled-water piping installation

Pump and buffer tank installation

Electrical and control integration

BMS integration

Testing and commissioning

Preventive maintenance

Scroll compressor replacement

Chiller retrofit

Complete chiller replacement

We focus on correct engineering selection, installation quality, safe commissioning, maintainability and long-term system performance.

Contact Zenvent Engineering for a turnkey air-cooled scroll chiller solution designed around your cooling capacity, operating conditions and project requirements.

Frequently Asked Questions

An air-cooled scroll chiller is a refrigeration system that uses one or more scroll compressors to produce chilled water. Heat from the chilled water is transferred to the refrigerant and rejected into the outdoor air through the condenser coils and fans.
