Installation, Repair & Lifecycle Execution Services
Zenvent Engineering provides professional Hot Water Piping solutions for commercial buildings, industrial facilities, hospitals, hotels, apartments, office buildings, shopping malls, manufacturing plants, educational institutions, domestic hot water systems, boiler systems, hydronic heating systems, underfloor heating systems and district heating applications.
A hot water piping system is used to carry heated water from a boiler, water heater, heat exchanger, solar water heater, heat pump or central heating source to fixtures, heating coils, FCUs, AHUs, radiators, underfloor heating loops and domestic hot water points. Proper hot water pipe installation helps maintain temperature, reduce heat loss, improve comfort and support long-term heating system performance.
Whether you need HVAC hot water piping, boiler hot water piping, domestic hot water piping, hydronic heating piping, hot water supply and return piping, hot water pipe insulation, hot water pipe pressure testing, hot water pipe leakage repair, hot water piping maintenance or hot water piping AMC service, Zenvent Engineering offers complete support from design to commissioning.

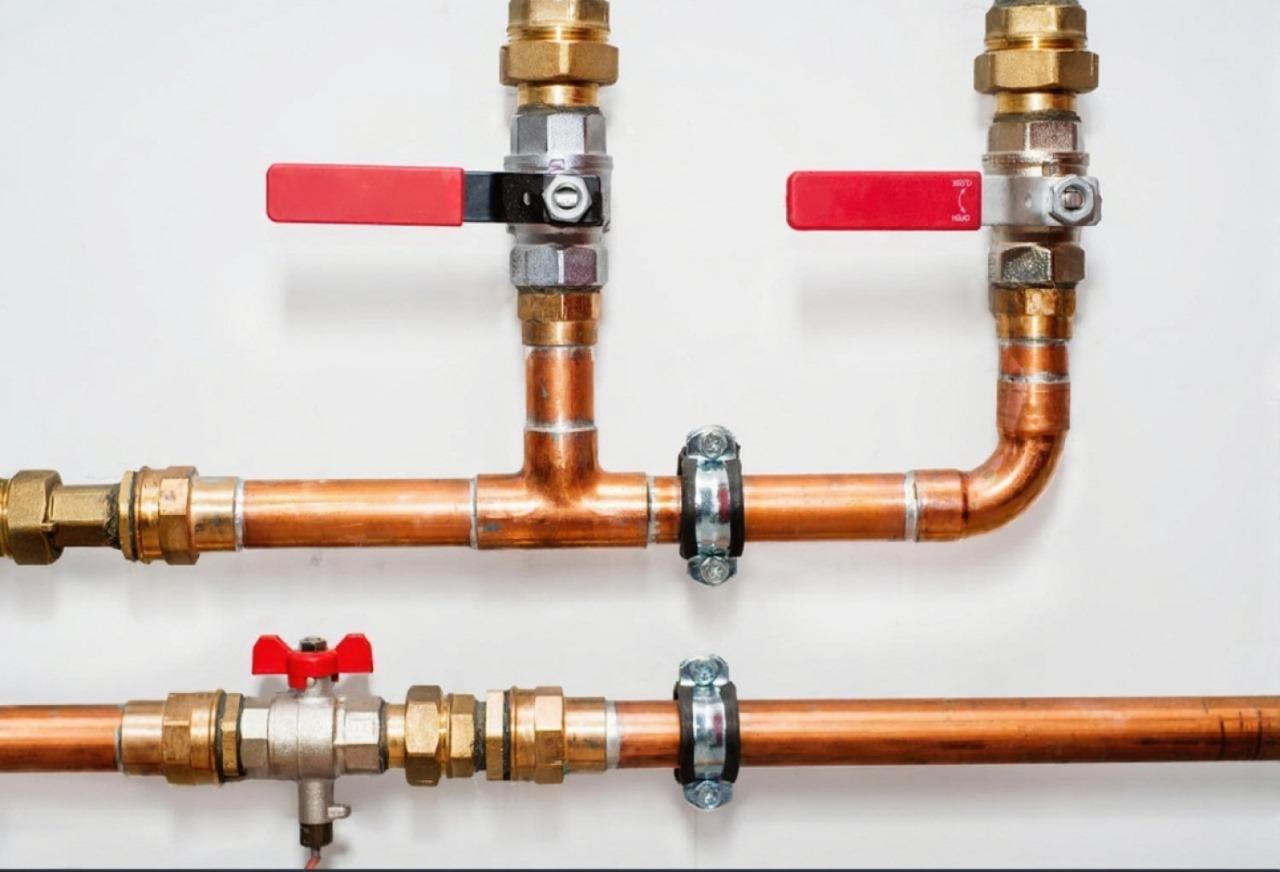

Hot Water Piping is a piping network used to transport hot water from a heat source to different parts of a building or HVAC system. It is commonly used for domestic hot water supply, heating coils, AHU heating, FCU heating, underfloor heating, radiator heating and central heating systems.
A hot water piping system may include hot water supply pipe, hot water return pipe, circulation pump, valves, strainers, expansion tank, air separator, insulation, supports, gauges and fittings.
In HVAC, hot water piping means the pipe network that carries heated water to heating coils, AHUs, FCUs, heat exchangers, radiant heating systems or hydronic heating equipment. It is also known as heating water piping, HVAC hot water piping, hydronic piping system or boiler hot water piping.
The main purpose of hot water piping is to distribute heated water safely and efficiently. It supports:
Hot water piping plays an important role in both comfort heating and domestic hot water systems. In HVAC heating, it carries hot water to heating coils, AHUs, FCUs and radiators. In domestic systems, it carries hot water to bathrooms, kitchens, wash basins, showers, geysers, water heaters and hot water taps.
Zenvent Engineering provides hot water piping services for:
The hot water piping system working principle is based on heating, circulation, heat transfer and return flow. A boiler, water heater, solar water heater, heat exchanger or heat pump heats the water. The hot water is then circulated through supply pipes to fixtures or heating equipment. After heat transfer, the water may return through a return line for reheating and recirculation.
Hot water is generated by a boiler, gas geyser, electric water heater, solar water heater, heat pump, heat exchanger or central heating system. The heat source raises water temperature to the required level for domestic use or HVAC heating.
The hot water supply pipe, also called HWS pipe, carries heated water from the boiler or heat source to connected equipment, fixtures or heating circuits.
Hot water transfers heat through AHU heating coils, FCU heating coils, radiators, underfloor heating pipes, heat exchangers, hot water taps, showers and other fixtures.
The hot water return pipe, also called HWR pipe, carries cooler return water back to the heat source for reheating. This is common in closed loop hot water piping, hydronic heating and hot water recirculation systems.
A hot water circulation pump moves water through the piping network. Pump selection depends on flow rate, pipe length, pressure drop, height, fittings and heating system design.
Control valves, balancing valves, isolation valves, pressure gauges, temperature gauges and flow meters help maintain correct hot water flow and temperature.
A hot water piping system includes pipes, fittings, valves, insulation and accessories that help distribute hot water safely and efficiently.
| Component | Function | Benefit |
|---|---|---|
| Hot Water Supply Pipe | Carries hot water from heat source to fixtures or equipment | Supports hot water delivery |
| Hot Water Return Pipe | Carries return water back to heat source | Supports recirculation and reheating |
| Hot Water Pumps | Circulate hot water through the system | Maintains flow |
| Headers and Manifolds | Distribute hot water to multiple lines | Improves piping organization |
| Isolation Valves | Isolate equipment or pipe sections | Supports maintenance |
| Balancing Valves | Adjust water flow | Helps system balancing |
| Control Valves | Control hot water flow to heating coils | Improves temperature control |
| Strainers | Remove dirt from water flow | Protects valves, pumps and coils |
| Flexible Connectors | Absorb vibration | Protects piping and equipment |
| Expansion Tank | Handles water expansion | Maintains system pressure |
| Air Separator | Removes trapped air | Prevents air lock |
| Pressure Gauges | Show system pressure | Supports monitoring |
| Temperature Gauges | Show hot water temperature | Helps performance checking |
| Flow Meter | Measures water flow | Supports commissioning and balancing |
| Pipe Supports and Hangers | Support pipe weight | Prevents sagging and vibration |
| Pipe Insulation | Reduces heat loss | Saves energy and maintains temperature |
Zenvent Engineering supports different types of hot water piping systems based on building use, heating source, temperature requirement and HVAC design.
| Type of Hot Water Piping | Best Suitable For | Key Features |
|---|---|---|
| Domestic Hot Water Piping | Bathrooms, kitchens, hotels and apartments | Supplies hot water to fixtures |
| HVAC Hot Water Piping | AHUs, FCUs and heating coils | Used for building heating |
| Hydronic Heating Piping | Radiators and underfloor heating | Uses water as heating medium |
| Boiler Hot Water Piping | Boiler rooms and heating plants | Connects boiler to heating system |
| Closed Loop Hot Water Piping | HVAC heating systems | Water recirculates in a closed circuit |
| Hot Water Recirculation Piping | Large buildings and hotels | Reduces waiting time for hot water |
| Primary Hot Water Piping | Boiler-side piping | Connects heat source and primary pumps |
| Secondary Hot Water Piping | Building distribution | Supplies hot water to zones |
| Primary-Secondary Hot Water Piping | Large heating systems | Separates boiler loop and building loop |
| Constant Flow Hot Water Piping | Simple heating systems | Fixed water flow |
| Variable Flow Hot Water Piping | Energy efficient heating systems | Flow changes based on load |
| District Heating Hot Water Piping | Campus and large developments | Centralized heating distribution |
| Underground Hot Water Piping | Outdoor and district heating routes | Installed below ground |
| Pre-Insulated Hot Water Piping | Underground and outdoor hot water lines | Reduces heat loss |
Hot water pipe material selection depends on temperature, pressure, application, corrosion risk, installation location, pipe size, cost and maintenance requirement.
| Pipe Material | Common Use | Key Features |
|---|---|---|
| Mild Steel Hot Water Pipe | HVAC and boiler piping | Strong and suitable for fabrication |
| Carbon Steel Hot Water Pipe | Commercial and industrial heating systems | Durable for large piping systems |
| Galvanized Iron Hot Water Pipe | Selected water systems | Zinc coating supports corrosion resistance |
| Stainless Steel Hot Water Pipe | Hospitals, hotels and special applications | High corrosion resistance |
| Copper Hot Water Pipe | Domestic hot water and water heater lines | Durable and heat resistant |
| CPVC Hot Water Pipe | Plumbing and hot water lines | Suitable for hot and cold water applications |
| PPR Hot Water Pipe | Plumbing and water distribution | Heat fusion jointing and lightweight |
| PEX Hot Water Pipe | Residential and underfloor heating | Flexible piping option |
| Pre-Insulated Hot Water Pipe | Underground and district heating | Factory insulation reduces heat loss |
MS hot water piping is commonly used in HVAC heating systems, boiler rooms, heating water distribution and industrial heating applications.
Carbon steel hot water piping is used in commercial and industrial heating systems where strong pipework is required.
GI hot water piping may be used in selected applications based on water quality, temperature and project specification.
Stainless steel hot water piping is suitable for areas where corrosion resistance, hygiene and durability are important.
Copper pipe for water heater and hot water heater lines is commonly used in domestic hot water, geyser connections and selected plumbing applications.
CPVC pipe for hot water is commonly used in residential and commercial plumbing because it supports hot and cold water distribution.
PPR hot water piping is used in plumbing systems where heat fusion jointing and plastic piping are preferred.
PEX hot water piping is used in selected domestic hot water and underfloor heating applications due to its flexibility.
Pre-insulated hot water piping is used for underground hot water piping, district heating and outdoor hot water distribution where heat loss control is important.
Hot water piping material selection depends on operating temperature, pressure rating, pipe size, flow rate, installation location, water quality, corrosion risk, jointing method, insulation requirement and project budget.
Specifications can be customized based on pipe diameter, flow rate, temperature, pressure rating, insulation thickness, valve selection, heat source and application type.
| Specification | Details |
|---|---|
| Service Type | Commercial hot water piping |
| Suitable For | Offices, malls, hotels, hospitals and commercial buildings |
| System Type | Domestic hot water or HVAC heating system |
| Pipe Material | MS, carbon steel, copper, CPVC, PPR or project-specific material |
| Lines | Hot water supply pipe and hot water return pipe |
| Accessories | Valves, strainers, gauges, expansion tank and flow meter |
| Insulation | Hot water pipe insulation with cladding if required |
| Testing | Pressure testing, hydro testing and flushing |
| Service Support | Design, installation, maintenance and AMC |
| Specification | Details |
|---|---|
| Service Type | Industrial hot water piping |
| Suitable For | Factories, manufacturing plants and industrial heating systems |
| Pipe Material | MS, carbon steel, stainless steel or project-specific pipe |
| System Type | Closed loop hot water piping or process heating piping |
| Accessories | Headers, valves, gauges, strainers and flexible connectors |
| Insulation | Thermal insulation for heat loss prevention |
| Installation | Fabrication, welding and heavy-duty support system |
| Testing | Hydro testing, flushing and commissioning |
| Service Support | Industrial installation, repair and maintenance |
| Specification | Details |
|---|---|
| Service Type | Boiler hot water piping |
| Suitable For | Boiler rooms and central heating systems |
| Connected Equipment | Boiler, pump, expansion tank, air separator and headers |
| Lines | Boiler supply and return piping |
| Pipe Material | MS, carbon steel or stainless steel as required |
| Accessories | Isolation valves, balancing valves, strainers and gauges |
| Insulation | Thermal insulation with protective cladding |
| Service Support | Fabrication, installation, testing and commissioning |
| Specification | Details |
|---|---|
| Service Type | Domestic hot water piping |
| Suitable For | Bathrooms, kitchens, hotels, apartments and hospitals |
| Heat Source | Water heater, geyser, boiler, solar water heater or heat pump |
| Pipe Material | CPVC, copper, PPR, PEX or project-specific material |
| Lines | Hot water line and hot water return line |
| Accessories | Valves, flexible connectors and pressure relief pipe |
| Insulation | Recommended for heat loss reduction |
| Service Support | Plumbing installation, repair and maintenance |
| Specification | Details |
|---|---|
| Service Type | Hot water piping for AHU |
| Application | AHU heating coil connection |
| Pipe Lines | HWS pipe and HWR pipe |
| Valve Set | Isolation valve, control valve and balancing valve |
| Accessories | Strainer, flexible connector, thermometer and pressure gauge |
| Insulation | Thermal insulation for temperature maintenance |
| Testing | Leak testing and flow balancing |
| Service Support | Installation, insulation and commissioning |
| Specification | Details |
|---|---|
| Service Type | Hot water piping for FCU |
| Application | Fan coil unit heating system |
| Pipe Size | Based on FCU heating capacity and flow requirement |
| Pipe Material | Copper, CPVC, PPR, MS or project-specific material |
| Valve Set | Isolation valve, control valve and balancing valve |
| Insulation | Required for heat loss reduction |
| Testing | Pressure testing and flow checking |
| Service Support | FCU pipe installation and repair |
| Specification | Details |
|---|---|
| Service Type | Underfloor heating water pipes |
| Suitable For | Residential, commercial and hydronic heating systems |
| Pipe Material | PEX, PPR or project-specific pipe |
| System Type | Hydronic underfloor heating |
| Layout | Loop-based floor heating design |
| Accessories | Manifold, control valve and circulation pump |
| Application Benefit | Even heating and comfort |
| Service Support | Installation, testing and maintenance |
| Specification | Details |
|---|---|
| Service Type | Pre-insulated hot water piping |
| Suitable For | Underground hot water piping and district heating |
| Pipe Material | Steel, PEX, HDPE jacketed or project-specific pipe |
| Insulation | Factory-applied insulation |
| Outer Protection | HDPE jacket or protective casing |
| Application | Underground hot water supply and return lines |
| Benefit | Reduces heat loss and site insulation work |
| Testing | Pressure testing and leak checking |
| Service Support | Supply, installation and commissioning |
| Specification | Details |
|---|---|
| Service Type | Solar hot water pipe installation |
| Suitable For | Solar water heater systems and domestic hot water lines |
| Pipe Material | Copper, CPVC, PPR or project-specific material |
| Lines | Solar water heater pipe, hot water supply and return as required |
| Insulation | Required for heat loss prevention |
| Accessories | Valves, pressure relief pipe and flexible connectors |
| Application Benefit | Supports renewable hot water supply |
| Service Support | Installation, insulation and repair |
Commercial hot water piping is used for domestic hot water, HVAC heating, washrooms, kitchens, pantries, heating coils and service areas.
Office buildings use hot water piping for washrooms, kitchens, pantry areas, HVAC heating coils and central hot water systems.
Hospitals require reliable hot water piping for domestic hot water, patient areas, kitchens, laundry, sterilization support and HVAC heating systems.
Hotels need domestic hot water piping for guest rooms, bathrooms, kitchens, laundry, spa areas and central heating systems.
Apartments use hot water pipe systems for bathrooms, kitchens, geyser connections, hot water lines and recirculation systems.
Shopping malls use hot water piping for washrooms, kitchens, food courts, HVAC heating and service areas.
Industrial hot water piping is used for process heating, manufacturing support, cleaning, utility systems and HVAC heating.
Manufacturing plants use hot water piping for production support, utility heating, cleaning processes and comfort heating.
Schools, colleges and campuses use hot water piping for washrooms, kitchens, hostels and central heating systems.
Domestic hot water piping supplies hot water to bathrooms, kitchen sinks, showers, geysers, water heaters and hot water taps.
Hydronic heating piping circulates hot water through radiators, heating coils or floor heating loops.
Underfloor heating water pipes circulate warm water below the floor to provide comfortable radiant heating.
Hot water piping supplies heated water to radiators and returns cooler water to the boiler or heat source.
District heating hot water piping distributes hot water from a central heating plant to multiple buildings.
Proper hot water piping ensures heated water reaches fixtures, heating coils and equipment with the required flow and temperature.
Correct pipe insulation helps reduce temperature loss and improves energy efficiency.
Good design, valve selection and flow balancing help maintain stable water temperature.
A hot water recirculation system reduces waiting time for hot water in large buildings, hotels and apartments.
Proper pipe sizing, insulation and pump selection help reduce energy waste.
Correct hot water flow improves heating coil, radiator and underfloor heating performance.
Quality material, proper jointing, welding, testing and commissioning reduce leakage risk.
Good installation, water quality monitoring and preventive maintenance help extend piping system life.
Correct valve placement, gauges, access points and pipe labeling make maintenance and flow balancing easier.
A hot water piping system must be designed carefully to maintain temperature, flow, pressure and energy efficiency.
| Design Factor | Why It Matters |
|---|---|
| Heating Load Requirement | Defines hot water capacity and flow |
| Hot Water Demand | Important for domestic hot water systems |
| Flow Rate Requirement | Helps calculate pipe size and pump capacity |
| Pipe Sizing | Controls velocity and pressure drop |
| Pressure Drop | Affects pump head and flow |
| Pump Head Calculation | Ensures proper circulation |
| Pipe Velocity | Prevents noise, erosion and high pressure loss |
| Supply and Return Temperature Difference | Affects heating performance |
| Valve Selection | Supports isolation, balancing and control |
| Expansion and Contraction | Prevents pipe stress |
| Insulation Requirement | Reduces heat loss |
| Heat Loss Control | Maintains water temperature |
| Accessibility for Maintenance | Supports repair and long-term operation |
Zenvent Engineering provides hot water piping installation for HVAC heating, domestic hot water, boiler systems, geyser connections, water heater lines, underfloor heating and industrial heating systems.
Pipe cutting and fabrication should be done based on approved layout, pipe material, size and site measurement.
Hot water pipe jointing may include welding, threading, compression fittings, solvent cement jointing or fusion jointing depending on pipe material.
Pipe supports and hangers help carry pipe weight, prevent sagging and reduce vibration.
Isolation valves, balancing valves, control valves and strainers should be installed for easy operation and maintenance.
Hot water piping connection to boiler, geyser, water heater, solar water heater or heat exchanger should include proper valves, safety devices and service access.
Hot water piping connection to AHU, FCU and heating coils should include control valves, balancing valves, isolation valves, strainers and flexible connectors as required.
Hot water pipe insulation is important for heat loss reduction, temperature maintenance and energy saving.
Pipe insulation keeps hot water temperature stable and reduces unwanted heat loss from piping.
Insulating hot water pipes helps reduce heat loss during water distribution, especially in long pipe routes.
Insulation helps maintain hot water temperature from the heat source to the point of use.
Reduced heat loss means the boiler, water heater or heating system works more efficiently.
Common hot water pipe insulation materials include elastomeric insulation, fiberglass insulation, rockwool insulation, PUF insulation and pre-insulated pipe systems.
Hot water pipe insulation with aluminium cladding or jacketing is used in plant rooms, outdoor areas and exposed locations for protection.
Hot water pipe insulation thickness depends on pipe size, water temperature, ambient condition, installation location and heat loss control requirement.
Indoor piping needs heat loss control and safety protection, while outdoor piping may require weatherproof insulation and cladding.
Testing and commissioning confirm that the hot water piping system is leak-free, clean, balanced and ready for operation.
Visual inspection checks pipe routing, supports, insulation, valve placement, joints, equipment connections and safety components.
Hot water pipe pressure testing checks pipe strength and leakage before final operation.
Hydro testing uses water pressure to test the pipe system and confirm joint integrity.
Hot water pipe flushing removes dirt, debris, welding particles and installation residue from the piping system.
Chemical cleaning may be required in selected systems to remove oil, scale, rust or internal contamination.
Leak testing identifies weak joints, damaged fittings or installation issues before commissioning.
Air venting removes trapped air from the hot water loop to prevent air lock and low flow issues.
Hot water flow balancing ensures each heating coil, FCU, AHU, radiator or fixture gets the required flow.
Pump testing confirms flow, pressure, head and system circulation performance.
Temperature difference checking between supply and return lines helps verify system heating performance.
The final commissioning report confirms testing, flushing, balancing and system readiness.
Regular hot water piping maintenance helps prevent leakage, heat loss, corrosion, low flow, air lock, insulation damage and uneven heating.
| Maintenance Activity | Purpose |
|---|---|
| Leak Inspection | Identifies water leakage early |
| Insulation Inspection | Reduces heat loss and protects pipework |
| Valve Checking | Ensures proper flow control |
| Strainer Cleaning | Prevents flow restriction |
| Air Vent Checking | Removes trapped air |
| Pump and Vibration Inspection | Prevents vibration-related issues |
| Water Quality Monitoring | Reduces corrosion and scaling |
| Corrosion Control | Extends piping life |
| Flow Balancing | Maintains proper hot water distribution |
| Pressure Gauge Checking | Confirms system pressure |
| Temperature Gauge Checking | Confirms system temperature |
| Preventive Maintenance Schedule | Reduces breakdown risk |
Regular leak inspection helps prevent water damage, pressure loss and system shutdown.
Damaged hot water insulation should be repaired quickly to reduce heat loss and protect piping.
Strainers should be cleaned to remove debris and maintain proper hot water flow.
Air vents help remove trapped air that can cause air lock, noise and low flow.
Water quality monitoring helps reduce corrosion, scaling and sludge formation inside hot water pipes.
Flow balancing ensures proper heat distribution across connected equipment and zones.
| Problem | Possible Reason | Solution |
|---|---|---|
| Water leakage | Poor joint, corrosion or damaged fitting | Leak repair and pressure testing |
| Heat loss in pipes | Poor or damaged insulation | Insulation repair or replacement |
| Insulation damage | Moisture, aging or mechanical damage | Re-insulation and cladding |
| Corrosion | Poor water quality or coating failure | Water treatment and pipe repair |
| Low flow rate | Strainer blockage, air lock or pump issue | Strainer cleaning and air venting |
| High pressure drop | Undersized pipe or blocked line | Pipe checking and system balancing |
| Air lock in pipes | Trapped air in hot water loop | Air venting and separator checking |
| Valve malfunction | Faulty valve or actuator | Valve repair or replacement |
| Strainer blockage | Dirt and debris buildup | Strainer cleaning |
| Pipe vibration | Pump vibration or poor supports | Support correction and flexible connector checking |
| Uneven heating performance | Poor flow balancing | Balancing and control valve checking |
| Delayed hot water delivery | Long pipe route or no recirculation | Recirculation system checking |
Hot water piping carries heated water for heating or domestic hot water use. Chilled water piping carries cold water for cooling applications.
Hot water piping distributes heated water. Condenser water piping carries heat from a chiller condenser to a cooling tower.
Hot water piping carries water as a heating medium. Refrigerant piping carries refrigerant gas or liquid in air conditioning and refrigeration systems.
Hot water piping carries heated water, while steam piping carries steam at higher temperature and pressure. Material selection, safety design and insulation requirements are different.
CPVC can be used for selected hot water plumbing applications. UPVC is generally used for cold water, drainage and sewage. Hot water piping may use CPVC, copper, PPR, PEX, MS, carbon steel or stainless steel depending on the system.
The hot water piping cost depends on pipe material, pipe diameter, total pipe length, insulation type, valve requirements, jointing method, installation location, testing and commissioning scope.
| Cost Factor | Impact on Cost |
|---|---|
| Pipe Material | MS, carbon steel, copper, CPVC, PPR, PEX and stainless steel have different costs |
| Pipe Diameter | Larger pipes require more material and labor |
| Total Pipe Length | Longer pipe routes increase project cost |
| Insulation Type | Insulation thickness and cladding affect cost |
| Valve and Accessories Requirement | Valves, strainers, gauges and expansion tanks add cost |
| Welding / Jointing / Fabrication Work | Complex jointing increases labor cost |
| Installation Complexity | Height, routing and access affect installation time |
| Site Conditions | Boiler room, shaft, ceiling, outdoor and underground work affect cost |
| Testing and Commissioning Scope | Hydro testing, flushing and balancing affect cost |
| Maintenance Requirement | Access and service planning affect long-term value |
Hot water piping cost per meter depends on pipe material, pipe size, insulation, fittings, supports, valves and installation condition.
Hot water piping price in India varies based on project size, pipe material, labor, insulation, testing and commissioning scope.
Installation cost depends on pipe fabrication, jointing method, pipe supports, valve installation, insulation work, height, site access and commissioning requirement.
Material cost includes pipes, fittings, flanges, valves, strainers, insulation, cladding, supports, hangers and accessories.
Zenvent Engineering provides complete hot water piping services for HVAC heating, domestic hot water, boiler rooms, commercial buildings, hotels, hospitals, apartments and industrial systems.
We support hot water piping layout, pipe sizing, flow calculation, pressure drop planning, pump head calculation and system coordination.
We supply hot water pipes, fittings, valves, strainers, supports, insulation and piping accessories as per project requirement.
We provide pipe cutting, fabrication, welding, threading and prefabrication support for hot water pipework.
Our installation support includes pipe routing, jointing, support fixing, valve installation, boiler connection, AHU connection, FCU connection and pipe labeling.
We provide hot water pipe insulation, heat loss prevention, cladding and insulation repair.
We provide pressure testing, hydro testing, leak testing and system checking.
We support hot water pipe flushing and cleaning to remove internal debris before commissioning.
We support air venting, flow balancing, pump checking, temperature checking and final commissioning.
We provide preventive maintenance, leak inspection, insulation checking, valve checking, strainer cleaning and water quality monitoring.
We repair hot water pipe leakage, insulation damage, valve issues, corrosion, low flow, air lock and vibration problems.
Zenvent Engineering offers AMC service for hot water piping systems to support regular inspection and reliable heating performance.
Zenvent Engineering delivers reliable hot water piping solutions for commercial, industrial, residential and HVAC heating projects. We focus on correct design, quality installation, proper insulation, leak-free jointing, accurate testing and long-term service support.
Hot water piping is a pipe network used to carry heated water from a boiler, water heater, geyser, heat exchanger or heating source to fixtures, heating coils or HVAC equipment.
